贝尔炉是热处理常用heavy loads in vertical position. Bell furnaces are used in various heat treatment process such as annealing, carburizing, hardening, tempering, although they can also be used for sintering processes at low temperatures, or for drying. Leading Bell furnace manufacturers in India for wire annealing, steel strips annealing, carburizing furnace, bright annealing furnace and bell type annealing furnace manufacturer.

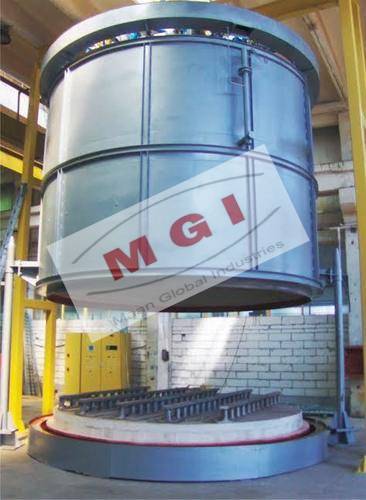

The load/product is heated inside a mobile cover or dome, which can be removed using a traveling hoist. Alternatively, an automatic lifting mechanism can also be provided as per the customer requirements. Bell furnace manufacturers in India generally offer customized designed and sizes based on the heat treatment requirements of a customer.
A complete guide to varioustypes of furnaces used in heat treatment processes.
Themostcommonbellfurnacesarethesingle stackandmultistacktypesusedforannealingcoilsofcold-rolledsteelstrip.Inmultistackbellfurnaces,threetoeight堆栈s,eachofwhichhasitsownmuffleforprotectionagainsttheeffectsofthehotairandbd官方登录入口ofcombustion,aremountedon arectangular
standundertheheatingdome.
Each堆栈is3–5mhighandcontainsthreetofivecoilswithatotalweightof up to180tons.
Thedomeisheatedbygasorelectricalresistanceheaters.Uponcompletionoftheheatingprocess,thedomeistransferredbycranetoanotherstandandthebd官方登录入口arelefttocoolunderthemuffles
onthefirststand.Heatexchangeunderthemuffleisintensifiedbyforcedcirculationofcontrolledgas.Coolingisacceleratedbywettingthemufflewithwaterorblowingcoldairoverit.
The working principle of a bell furnace is that duringtreatmentin abellfurnacethecoilsofstripareloose,withspacesbetweenthecoilloopssothatthegascirculatesbetweentheloopsandflowsovertheentiresurfaceofthestrip,whichmakes
possiblethermochemicaltreatmentandaccelerationofheatingandcooling.
MAAN GLOBAL INDUSTRIES is the leading bell furnace manufacturers in India offering temperatures ranging from 550°C up to 1,200°C.
Major Parts of a Bell Type Furnace are:
- base, diffuser and plenum and fan placed between base and diffuser.
- inner cover and inner jacket, the first component with the function of complete covering of the system.
- the second one for separating the charge area from the heated zone.
- cooling cover, which allows rapid cooling after annealing process.
Bell Furnace working Video
- 由于起密封感情良好的加热效率n furnace and base; furnace can of different sizes based on the requirement.
- Different bell lifting methods available, according to customer requirements and design.
- Bell furnaces offer an economical method of heat treatment when used with multiple bases.
- A bell furnace’s principal advantage is its simplicity, since not having any mechanism (such as a door or car), allied to its design principle, ensures a positive seal on the floor/base.
- Normally, a bell furnace can change position or base, with the goal being better productivity, since by having two bases it remains operational for longer. While one load is processed, the other will be cooling or loading/unloading, optimizing furnace use. Bell type annealing furnace is the most widely used in the wire drawing and coil manufacturing industry.
- Low maintenance system by not having mechanisms or moving parts in the furnace and that’s the uniqueness of bell furnace design. Maintenance is limited to the combustion and control equipment.
Types of Bell Type Furnaces and configurations offered by the leading Bell Furnace Manufacturers in India
Bell furnaces comes in electric heating, gas fired and oil fired configurations. Bell furnace manufacturers offer various heating sources depending on the application and customer requirements.
Steel Wire Annealing Bell Type Furnace
Effective loading space. Diameter 1,800 ~ 4,600mm; Height 1,800 ~ 4,000mm. Can customize-make for special size.
Heating source. Electricity or gas(LPG or LNG).
Protection atmosphere. The Nitrogen, cracked gas of ammonia or hydrogen.
Electrical control system. PC touch screen installed with professional heat treatment software, fully in-process control.
Atmosphere system. Oxygen probe or Oxygen/ hydrogen analyzer.
The Configuration options:
A. Standard configuration: Bell – type furnace + electrical control system + ammonia cracker + oxygen probe system.
B. High configuration: Bell-type furnace + electrical control system + Oxygen/ hydrogen analyzer.
C. Premium configuration: Bell – type furnace + electrical control system + ammonia cracker + hydrogen/Oxygen analyzer.
D. Full hydrogen configuration: Bell-type furnace + electrical control system + hydrogen generator + Oxygen/ hydrogen analyzer+ security control system.
Bell Type Electric Heat Treatment Furnace for Steel Strips
Name |
MGI Bell Type Furnace |
MGI 150 |
|
Rated power |
KW |
144 |
|
Rated voltage |
V |
415 |
|
Phase number |
3 |
||
Frequency |
HZ |
50 |
|
Temperature control area |
area |
2 |
|
Working temperature of inner cover |
ºC |
≤1050 |
|
Annealing temperature |
ºC |
450-950(adjustable) |
|
Temperature of furnace external |
ºC |
Indoor temperature +≤40 |
|
Furnace temperature uniformity |
ºC |
≤±5(Heat preservation stage) |
|
Working dimension |
mm |
Φ1000×2300 |
|
Effective loading diameter |
mm |
Φ980 |
|
Effective loading height |
mm |
2100 |
|
Max loading weight |
T |
≤4 |
|
Cooling cover |
Empty cold blast rate |
M3/h |
3200 |
Empty cold blast power |
KW |
1.5KW×2 |
|
Empty cold blast rotate speed |
r/min |
1500 |
|
Cooling water flow |
M3/h |
10 |
|
Furnace base |
Max loading |
T |
≤7 |
Heating fan power |
KW |
5.5 |
|
Heating fan rotate speed |
r/min |
740/1450 |
|
Diameter of blades |
mm |
Φ500 |
|
Inner cover |
Diameter |
mm |
Φ980 |
Max loading height |
mm |
2100 |
|
Max temperature |
ºC |
850 |
|
Max air pressure |
Pa |
9.5×103 |
|
Limiting vacuum |
Pa |
1×103 |
|
The requirement for protection gas: 1. safety gas: N299% 2. Ammonia decomposition gas: 7-10M3/h 3. Protect the gas purity requirement: O2≤3ppm ,NH3≤3ppm ,H2O≤-50ºCD.P |
|||
Bell Type Bright Annealing Furnace Manufacturer in Mumbai, Pune, Hyderabad, Delhi, Kolkata, Bengaluru
Specifications:
| Maximum temperature | 1200ºC |
| Working temperature | 1100ºC (continuous) |
| Heating rate | 0-10ºC/min |
Chamber size |
800*800*2100(W*L*H) |
| Temperature control | PID automatic control |
| Voltage | AC 415V 3Phase,50/60 Hz |
| Heating element | Kanthal A1 |
| Thermocouple | R-type |
Standard accessories |
Power Control Unit, Temperature Controller, Wiring |
| Warranty | One year standard warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty.) |
How much is the cost of a Bell Furnace?
Bell furnace manufacturers in India offer Bell type furnaces based on customized design and setup that affects the pricing for each furnace. However, cost of a bell furnace starts at Rs. 12,00,000 lacs and goes upto Rs. 52,00,000 lacs.
Bell furnace is well suited for steel wires, steel strips, sintering processes and other metal heat treatment industries due to its high heating efficiency, low maintenance and robust design.
