A complete solution provider withinthe sectorof surface preparation & paint spray booth provides its expertisefor everyindustry. MGI design, manufactured, installed, erected & commissioned huge turnkey projects for various renowned giant industries. If you’re tryingto seek outthe simplestPaint booth manufacturers in Thailand then MGI can design and deliver paint booth across any city in Thailand.
Manufacturers of Paint Booth in Bangkok,Pathumthani, Samut Prakarn, Saraburi, Chachoengsao, Rayong, Chonburi, Ayutthaya, Nakornratchasima, Prachinburiand Blast Room systems in Thailand
The variouskinds ofpaint booth manufactured in Thailand by MGI are:
- Down Draft Paint Spray Booth
- Semi-Down Draft Paint Spray Booth
- End Draft Paint Spray Booth
- Down Draft Wet Paint Spray Booth
- Water Curtain Paint Spray Booth
Features of our Paint Booth Manufacturing in Thailand
- Special design of intake & exhaust filtration provides for even air movement inside the booth
- The efficient centrifugal fan guarantees superior air movement & quite operation
- Access door window with clear toughened glass
- High Particulate removal efficiency
- No Sludge Disposal
- 艾尔l Modular Construction
- Healthy and Pollution free work environment
- Increase Productivity –Decreaseoperating costbecause ofelimination of water curtain chemical
- LAW– In compliance with stringent pollution control norms
- SAFETY– Spraying paint may involve fire risk from both solvent vapours and continuously over spray deposits. A risk eliminated by employinga spraybooth.
- OPERATOR COMFORT AND HEALTH– Provides clean air to the operator, removing optimized paint particles through the exhaust
- ENHANCE QUALITY of labor –Remove over spray effectively, thus eliminate its setting on wet painted components
Draft Down Paint Booth
- Reducesthe firesidehazard
- Maintain dust level to minimum, prevents spreading of paint and maintain clean air at the operators breathing level.
- Collects over sprayed paint, solid and discharge fumes outside the building
Semi-Down Draft Paint Booth
The Semi Down Draft (the direction of flow of air is towards the side walls of spray booth) Paint Spray Booth is suitable for conventional, air-less and electrostatic painting and its consists of painting chamber, Inletair filter, Paint Trap Filters, axial flow Fan, motor , duct and canopy etc.
The design of the paint booth aregetting tobe of semi down draft type paint booth with disposable paint trap filters on side walls. The intake air into the paint booth is filtered by intake filter to avoid foreign particle deposition on the painted surface. The intake air is sucked into the space by the extraction modules located on the side walls
- Reducesthe firesidehazard
- Collects over sprayed paint, solid and discharge fumes outside the building
- Maintain dust level to minimum, prevents spreading of paint and maintain clean air at the operators breathing level.

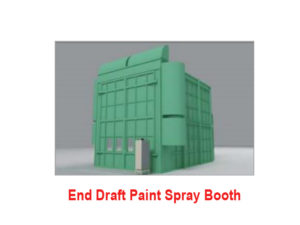

End Draft Paint Booth Manufacturers in Thailand
The End Draft (the direction of flow of air is towardsthe bottomof spray booth) Paint Spray Booth is suitable for conventional, air-less and electrostatic painting and its consists of painting chamber, Inletair filter, Paint Trap Filters, axial flow Fan, motor , duct and canopy etc.the designof the paint booth aregetting tobe of End Draft type paint booth with disposable paint trap filters on floor. The intake air into the paint booth is filtered by intake filter to avoid foreign particle deposition on the painted surface. The intake air is sucked into the space by the extraction modules located on the rear wall.
Functions:
- Maintain dust level to minimum, prevents spreading of paint and maintain clean air at the operators breathing level.
- Collects over sprayed paint, solid and discharge fumes outside the building
- Reducesthe firesidehazard
Water Curtain Type Paint Booth
Down Draft-Wet Type Paint Spray Booth
Pumpless type Wet Fume Collector
Wet fume collector is fabricated from 2mm steel sheet and suitably reinforced for strength and rigidity. Grating aregetting tobe provided on cistern in paint spray booth. cistern is civil constructed as per pit drg. provided by us. Detailed civil drg. for pit construction is in buyer’s scope.
Baffle type arrangement to eliminate the moisture from air exitout inatmosphere. During operation, a series of eliminator separate the air from the liquid moisture. Clean air is exhausted to atmosphere. Side doors of size 500 mm (W) x 100 mm (H) is provided atthe sidesof wet fume collector for inspection and maintenance. Disposal of paint particulate from the cistern is manual.
在热Spray process dust is generatedto remainthe environment friendly suctionis formedby an exhaust. Fan causes the dust laden air to enter a winder area after an abrupt change in its direction. At this stage heavier dust particlessettle downwithout causing any abrasion to the metallic surfaces,which canbe removed through a clean out door.
After this the air carrying finer dust particles strikes the water surface and travels beneath plate of a venture system creating a stream of droplets entraining dust. This stream undergoes a change in direction causing dust to urge collected within the water.
Dust free but wet air strikessort ofbaffles where the moisture is separated and clean air escapes to the atmosphere through the fan . The collected dust settles down as sludge atthe lowestof the wet collector and is cleaned out manually at intervals through a drain.
PU Coated Paint Spray Booth Manufacturers in Thailand
Powder laden air from dust zones is sucked into the pre filter (multi cyclones)because ofexhaust created by the fan . Maximum particles are collected by the pre filter, while little or no powder is collected around
the fabric bags.the gutsbeat jet filter bag dust collectorcould also bea self-cleaning system.
Thenoise levelis below 85 dBA. Dust emission level within the atmosphere throughthe fabricbagsmay be asmaller amount than 50 mg / N cubic meters. The suspended powderis simplycollected within the dust collector. Powder that falls downwithin thehopper is collected manually from the hopper. Fan motors: 7.5 HP, 415V / 3P / 50 Hz IP 54 protection.
Powder Coating Booth Manufacturers in Thailand
‘MGI” brings you the manual and automatic powder coating booths with fast and quality coating solution. Booths are designedto supplyhigh degree of efficiency in recovery and optimum performance of the spray guns, whichfinishes upyou in low running cost and more profits.we providethe whole交钥匙解决方案与传送带化自动爆炸ing or Pre treatment, Preparation room, Automatic Powder coating booth with proper feed reciprocator’s gun and efficient recovery of powder, new technology Infrared catalytic heaters oven for fast curing.
We bring you the Puff Sandwiched panel Booths with sandwiched panel oven alsoto providean aesthetic looks.which supplyyouthe additionaladvantage of Puff Panels like high insulation value, anti corrosive, also resistanceof heatupto 70 degrees, resistance to detergents, liquids and chemical solvent as compare to normal GI or MS sheet. Also we bring you the fast color change booths for various color applications.
MGI POWDER COATING BOOTH ADVANTAGES
- With New Aesthetic lookbecause ofPuff sandwiched panel designed
with additional advantages of high insulation value, anti corrosive,
also resistanceof heatupto 70 degrees, resistance to detergents,
liquids and chemical solvent. - High Efficiency, Quality, Cost Optimization, High Productivity are
the features of our booths. Easy for maintenance purpose and also designed for straightforward fitment & are of strong designed.
Working video of our Automobile Paint Spray Booth
PAINT SPRAY BOOTH – For Automobile Manufacturers in Thailand
The Down Draft (the direction of flow of air is towardsthe bottomof spray booth) Paint Spray Booth is suitable for conventional, air-less and electrostatic painting and it consists of painting chamber, Inletair filter, Paint Trap Filters, Axial Flow Fan, motor , duct and canopy etc.the designof the paint booth aregetting tobe of down draft type paint booth with disposable paint trap filters on floor. The intake air into the paint booth is filtered by intake filter to avoid foreign particle deposition on the painted surface. The intake air is sucked into the space by the extraction modules located on the side walls.
The health and explosion hazardous paint fume particles are sucked by partial vacuum create by centrifugal fan through filters.
Fully Enclosed Down Draft Dry Type Paint Spray
Boothis supposedto provideefficient, flexible and clean painting .
Thus air discharge into the atmosphere is clean and there’s no sludge disposal as found in normal Wet Spray Booth
Salient Features:
- Reducesthe firesidehazard
- Collects over sprayed paint, solid and discharge solvent fumes outside the building.
- Maintains dust level to minimum, prevents spreading of paint and maintains clean air at the operators breathing level.
- Access door window is with clear toughened glass.
- High particulate removal efficiency.
- 艾尔l modular construction.
- No sludge disposal
- The efficient centrifugal fan guarantees superior air movement & quite operation.
- Special design of intake & exhaust filtration provides for even air movement inside the booth.
- Healthy and pollution free work environment.
Specifications:
Paint Hood:Paint hood enclosure is fabricated from MS steel sheet and suitably reinforced for strength and rigidity. The paint booth is open from front and bottom side.
Control Panel
Suitable control panel housed with DOL Starter for fan motor, pump motor and On/Off switch for illumination
Exhaust Fan Motor
Wet fume collector is mounted with exhaust fan motor to suck the fume and clean air is discharged into the atmosphere.
Illumination
Paint booth is provided with Four No. Tube Lamps for illumination
Paint Trap Filter
Material:
Glass Fiber-Progressive
Structured
Filter Class:EU4
Dust Holding:~1000
g/sqm (In dry condition)
Spraying Guns
Illumination
VISION GLASS
Ceiling diffusion air intake filter
