A complete solution providerwithin thefield of surface preparation & paint spray booth provides its expertisefor eachindustry. MGI design, manufactured, installed, erected & commissioned huge turnkey projects for various renowned giant industries. Ifyou’retrying to find the bestPaint booth manufacturers in UAE then MGI can design and deliver paint booth across any city in UAE. Paint Booth Suppliers in UAE
Manufacturers of Paint Booth in Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, Umm al Quwain and Blast Room systems in UAE
The varioussorts ofpaint booth manufactured in UAE by MGI are:
- Down Draft Paint Spray Booth
- Semi-Down Draft Paint Spray Booth
- End Draft Paint Spray Booth
- Down Draft Wet Paint Spray Booth
- Water Curtain Paint Spray Booth
Features of our Paint Booth Manufacturing in UAE
- Healthy and Pollution free work environment
- All Modular Construction
- High Particulate removal efficiency
- No Sludge Disposal
- Access door window with clear toughened glass
- Special design of intake & exhaust filtration provides for even air movement inside the booth
- The efficient centrifugal fan guarantees superior air movement & quite operation
Benefits of a Paint Booth for your organisation
- ENHANCE QUALITYof labor–Remove over spray effectively, thus eliminate its setting on wet painted components
- OPERATOR COMFORT AND HEALTH –Provides clean air to the operator,removingoptimized paint particles through the exhaust
SAFETY– Spraying paint may involve fire risk from both solvent vapours and continuously over spray deposits. A risk eliminated byemploying aspray booth. - LAW– In compliance with stringent pollution control norms
-
Increase Productivity– Decreaseoperating expense thanks toelimination of water curtain chemical

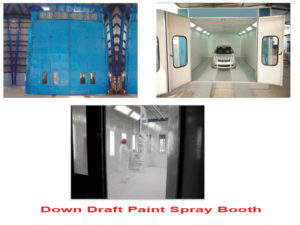

Draft Down Paint Booth
The Vertical Down Draft (the direction of flow of air is towardsthe groundof spray booth) Paint Spray Booth is suitable for conventional, airless and electrostaticpaintingand its consists of painting chamber, Inletair cleaner, Paint Trap Filters, axial flow Fan,motor, duct and canopy etc.the planningof the paint boothare going to beof vertical down draft type paint booth with disposable paint trap filters on floor. The intake air into the paint booth is filtered by intake filter to avoid foreign particle deposition on the painted surface. The intake air is sucked intothe spaceby the extraction modules located onthe ground.
Enclosure:
Paint Spray booth is of rectangular shape rigid bolted construction. The structure is self supporting andwon’tneed supporting foundation except fixing bolts. Fabricated out of 18swg M.S Sheet panels bolted withsteelfor rigidity.
Functions:
- Reducesthe hearthhazard
- Maintain dust level to minimum, prevents spreading of paint and maintain clean air at the operators breathing level.
- Collects over sprayed paint, solid and discharge fumes outside the building

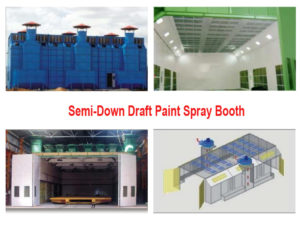

Semi-Down Draft Paint Booth
The Semi Down Draft (the direction of flow of air is towards the side walls of spray booth) Paint Spray Booth is suitable for conventional, air-less and electrostatic painting and its consists of painting chamber, Inlet air cleaner , Paint Trap Filters, axial flow Fan, motor , duct and canopy etc.
- Collects over sprayed paint, solid and discharge fumes outside the building
- Maintain dust level to minimum, prevents spreading of paint and maintain clean air at the operators breathing level.
-
Reducesthe hearthhazard
End Draft Paint Booth Manufacturers in UAE
The End Draft (the direction of flow of air is towardsthe groundof spray booth) Paint Spray Booth is suitable for conventional, air-less and electrostaticpaintingand its consists of painting chamber, Inletair cleaner, Paint Trap Filters, axial flow Fan,motor, duct and canopy etc.the planningof the paint boothare going to beof End Draft type paint booth with disposable paint trap filters on floor. The intake air into the paint booth is filtered by intake filter to avoid foreign particle deposition on the painted surface. The intake air is sucked intothe spaceby the extraction modules located onthe rearwall.
Functions:
- Maintain dust level to minimum, prevents spreading of paint and maintain clean air at the operators breathing level.
- Collects over sprayed paint, solid and discharge fumes outside the building
- Reducesthe hearthhazard

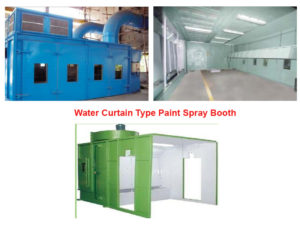

Water Curtain Type Paint Booth
Thepaintingisadministeredby operator withthe assistanceofpaintinggun [Buyerto rearrangepaintinggun]. The paint fume particles are sucked by the partial vacuum created byfanthrough a water curtain. The air is cleaned by scrubbing action in turbulent water. Theparticulateremains floating oncisternis periodically removed manually. The air discharged into the atmosphere is clean keeps the environment clean and friendly.
Enclosure:
Spray booth is of rectangular shape rigid bolted construction. The structure is self-supportingand cannot need supporting foundation except fixing bolts. Fabricated out of 18swg M.S Sheet panels bolted withsteelfor rigidity.
Construction & Design
The practical expertise enables usto stylethe Water Curtain Spray Booth with superior performance. The spray booth is modular in constructionin order thatboothare ofteneasily installed, modified or integrated into complete plant.the extramiddle suction, clearly provides improved air guidance and suction of hazardous paint fume particles. The water film thickness on the drain wallare oftenadjusted individually via throttle valves. The unit meets OSHA’s safety requirements.
Essential Elements of Water Curtain Spray Booth
Exhaust Fan Motor– Paint Spray Booth is mounted with high efficiency centrifugalfanand motor to suck the fume andparticulatein air
Water Pump and Piping –Paint Spray Boothgivenpumpand suitable piping arrangementfor correctcirculation of water
Throttle Valve –to regulatewater film thickness on the drain wall
Down Draft-Wet Type Paint Spray Booth
Thepaintingisadministeredby operator withthe assistanceof spray-painting gun [Buyerto rearrangepaintinggun]. The paint fume particles are sucked by the partial vacuum created byfanthrough a tank of water. Theparticulatefloating oncisternis periodically removed manually. The air discharged into the atmosphere is clean keeps the environment clean and friendly.
Pumpless type Wet Fume Collector
Wet fume collector is fabricated from 2mm steel sheet and suitably reinforced for strength and rigidity. Gratingare going to beprovided oncisternin paint spray booth.cisternis civil constructed as per pit drg. provided by us. Detailed civil drg. for pit construction is in buyer’s scope.
Baffle type arrangement to eliminate the moisture from air exitcall atatmosphere. During operation, a series of eliminator separate the air from the liquid moisture. Clean air is exhausted to atmosphere. Side doors of size 500 mm (W) x 100 mm (H) is provided atthe edgesof wet fume collector for inspection and maintenance. Disposal of paintparticulatefrom thecisternis manual.
The unique features of Pumpless Water Wash Booth
During Thermal Spray process dust is generatedto staythe environment friendly suctionis madeby an exhaust. Fan causes the dust laden air to enter a winder area after an abrupt change in its direction. At this stage heavier dust particlescalm downwithout causing any abrasion to the metallic surfaces,which maybe removed through a clean out door.
After this the air carrying finer dust particles strikes the water surface and travels beneath plate of a venture system creating a stream of droplets entraining dust. This stream undergoes a change in direction causing dustto urgecollectedwithin thewater.
Dust free but wet air strikesvarietyof baffles where the moisture is separated and clean air escapes to the atmosphere through thefan. The collected dust settles down as sludge atrock bottomof the wet collector and is cleaned out manually at intervals through a drain.
PU Coated Paint Spray Booth Manufacturers in UAE
Powder laden air from dust zones is sucked into the pre filter (multi cyclones)thanks toexhaust created by thefan. Maximum particles are collected by the pre filter, whilelittle or nopowder is collected around
the fabric bags.the heart beatjet filter bag dust collectormay be aself-cleaning system.
Thebackground levelis below 85 dBA. Dust emission levelwithin theatmosphere throughthe materialbagsis a smaller amountthan 50 mg / N cubic meters. The suspended powderis merelycollectedwithin thedust collector. Powder that falls down in the hopper is collected manually from the hopper. Fan motors: 7.5 HP, 415V / 3P / 50 Hz IP 54 protection.
Powder Coating Booth Manufacturers in UAE
“MGI” brings you the manual and automatic powder coating booths with fast and quality coating solution. Booths are designedto offerhigh degree of efficiency in recovery and optimum performance of the spray guns,which ends upyou in low running cost and more profits.we offerthe entireturnkey solution with Conveyorized Automatic Blasting or Pre treatment, Preparation room, Automatic Powder coating booth with proper feed reciprocator’s gun and efficient recovery of powder, new technology Infrared catalytic heaters oven for fast curing.
We bring you the Puff Sandwiched panel Booths with sandwiched panel oven alsoto supplyan aesthetic looks. Whichoffer youthe extraadvantage of Puff Panels like high insulation value, anti corrosive, also resistanceof warmth高达70度,耐洗涤剂、液体and chemical solvent as compare to normal GI or MS sheet. Also we bring youthe fastcolor change boothsfor variouscolor applications.
MGI POWDER COATING BOOTH ADVANTAGES
- With New Aesthetic lookthanks toPuff sandwiched panel designed
with additional advantages of high insulation value, anti corrosive,
also resistanceof warmthupto 70 degrees, resistance to detergents,
liquids and chemical solvent. - High Efficiency, Quality, Cost Optimization, High Productivity are
the features of our booths. Easy for maintenance purpose and also designedfor straightforwardfitment & are强劲的designed.
Working video of our Automobile Paint Booth
PAINT SPRAY BOOTH – FOR AUTOMOBILE Manufactures in UAE
- The health and explosion hazardous paint fume particles are sucked by partial vacuum create by centrifugal fan through filters.
- Fully Enclosed Down Draft Dry Type Paint Spray
- Boothis meantto supplyefficient, flexible and cleanpainting.
Salient Features:
- Reducesthe hearthhazard
- Collects over sprayed paint, solid and discharge solvent fumes outside the building.
- Maintains dust level to minimum, prevents spreading of paint and maintains clean air at the operators breathing level.
- Special design of intake & exhaust filtration provides for even air movement inside the booth.
- The efficient centrifugal fan guarantees superior air movement & quite operation.
- Access door window is with clear toughened glass.
- Healthy and pollution free work environment.
- High particulate removal efficiency.
- All modular construction.
- No sludge disposal.
Specifications:
Paint Hood:Paint hood enclosure is fabricated from MS steel sheet and suitably reinforced for strength and rigidity. The paint booth is open from front and bottom side.
llumination
Paint booth is provided with Four No. Tube Lamps for illumination
Exhaust Fan Motor
Wet fume collector is mounted with exhaust fan motor to suck the fume and clean air is discharged into the atmosphere.
Control Panel
Suitable control panel housed with DOL Starter for fan motor, pump motor and On/Off switch for illumination.
Paint Trap Filter
Material:
Glass Fiber-Progressive
Structured
Filter Class:EU4
Dust Holding:~1000
g/sqm (In dry condition)
Spraying Guns
Ceiling diffusion air intake filter
VISION GLASS
Illumination
Request a Quote Today for a Complete Blasting and Painting Solutions – Paint Booth Manufacturers in UAE
